Products Description
Thrust Ball Bearing 51105 Features and uses of thrust ball bearings
The size is inner diameter: 25mm, outer diameter: 42mm, thickness: 11mm
features
1. There are two types of one-way and two-way
2. In order to allow for installation errors, whether it is one-way or two-way, you can choose the spherical self-aligning spherical seat cushion type or the spherical seat ring type
3. High-quality steel - ultra-clean steel that can extend the life of the bearing by up to 80% 4. Advanced grease technology - NSK's lubricant technology can extend the life of the grease and improve the performance of the bearing 5. High-grade steel balls - Quiet and smooth when rotating at high speed
use
Thrust ball bearings are only suitable for parts bearing axial load on one side and low rotational speed, such as crane hooks, vertical water pumps, vertical centrifuges, jacks, low-speed reducers, etc., shaft rings of bearings, seats Ring and rolling element are separatedcan be assembled and disassembled separately
Thrust ball bearings are designed to withstand thrust loads during high-speed operation, and consist of washer-shaped rings with raceway grooves for ball rolling.
Because the ferrule is cushion-shaped, thrust ball bearings are divided into two types: flat base cushion type and self-aligning spherical surface cushion type.
In addition, thrust ball bearings can bear axial loads, but cannot bear radial loads.
Thrust ball bearing composition:

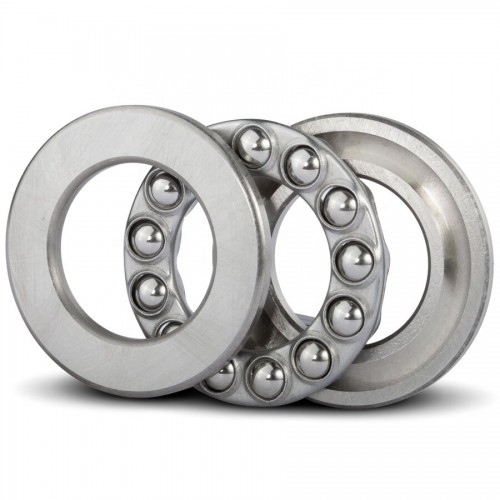

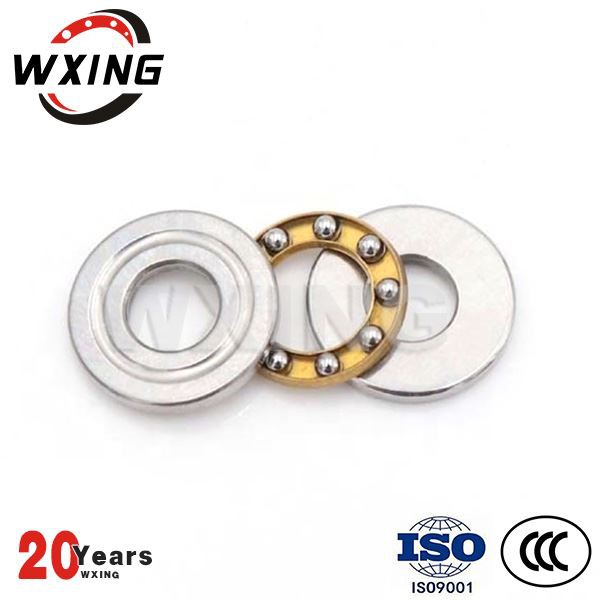

Thrust ball bearings are composed of three parts: seat ring, shaft ring and steel ball cage assembly.
The shaft ring matched with the shaft is called the seat ring matched with the shell.
Thrust ball bearings are only suitable for parts that bear axial load on one side and have low rotational speed, such as crane hooks, vertical water pumps, vertical centrifuges, jacks, low-speed reducers, etc. The shaft ring, seat ring and rolling elements of the bearing are separated and can be assembled and disassembled separately.
