Zhejiang Waxing Electromechanical Co., Ltd is one of the most professional manufacturers and suppliers of asnu 35 one way clutch bearing for car bearing in China. Welcome to buy high quality customized bearings made in China here from our factory. For price consultation, contact us.
Item number: ASNU 35
Type:Auto bearing
Quality:P0 P6 P4
Application:suitable for car
Type ASNU is a roller type freewheel non-bearing supported. Bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation. A typical arrangement is to install this type alongside a bearing within the same location tolerances. The inner race is keyed to the shaft. The outer race has positive n6 tolerance, to give a press fit in a H7 housing. Additional side notches in the outer race provide for positive torque transmission. If the housing is to K6 tolerance, use of the notches is not necessary, but the housing must be strong enough to not expand after assembly. This design can accept an axial misalignment of inner and outer race of ± S/2.
| Attribute | Value |
| Series | 63 |
| Inside Diameter | 35mm |
| Outside Diameter | 80mm |
| Race Width | 31mm |
| Torque | 383Nm |
| Over-running Speed | 1200 (Inner) rpm, 1900 (Outer) rpm |
| Keyway | Inner and Outer Race |
| Drag Torque | 16Ncm |

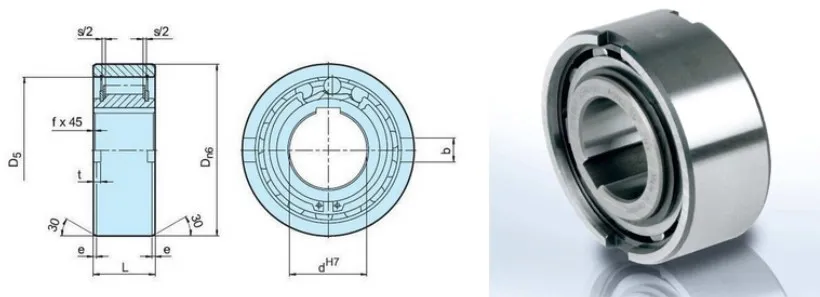

| Type | Size | Weight | Drag torque | |||||||||||
| Overrunning | ||||||||||||||
| Speeds | ||||||||||||||
| ASNU | dH7 | TKN1) | nimax2) | namax3) | Dn6 | D5 | L | b | t | s | e | f | TR | |
| [mm] | [Nm] | [min-1] | [min-1] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | [Ncm] | |
| 8 | 12 | 3300 | 5000 | 35 | 28 | 13 | 4 | 1.4 | 2.4 | 0.6 | 0.3 | 0.07 | 1.6 | |
| 12 | 12 | 3300 | 5000 | 35 | 28 | 13 | 4 | 1.4 | 2.4 | 0.6 | 0.3 | 0.06 | 1.6 | |
| 15 | 30 | 2400 | 3600 | 42 | 37 | 18 | 5 | 1.8 | 2.4 | 0.8 | 0.3 | 0.11 | 1.9 | |
| 17 | 49 | 2300 | 3400 | 47 | 40 | 19 | 5 | 2.3 | 2.4 | 1.2 | 0.8 | 0.15 | 1.9 | |
| 20 | 78 | 2100 | 3100 | 52 | 42 | 21 | 6 | 2.3 | 2.4 | 1.2 | 0.8 | 0.19 | 1.9 | |
| 25 | 125 | 1700 | 2600 | 62 | 51 | 24 | 8 | 2.8 | 2.4 | 1.2 | 0.8 | 0.38 | 5.6 | |
| 30 | 255 | 1400 | 2200 | 72 | 60 | 27 | 10 | 2.5 | 2.4 | 1.8 | 1 | 0.54 | 14 | |
| 35 | 383 | 1200 | 1900 | 80 | 70 | 31 | 12 | 3.5 | 2.4 | 1.8 | 1 | 0.74 | 16 | |
| 40 | 538 | 1100 | 1700 | 90 | 78 | 33 | 12 | 4.1 | 2.5 | 1.8 | 1 | 0.92 | 38 | |
| 45 | 780 | 1000 | 1600 | 100 | 85 | 36 | 14 | 4.6 | 2.5 | 1.8 | 1 | 1.31 | 43 | |
| 50 | 1013 | 850 | 1350 | 110 | 92 | 40 | 14 | 5.6 | 2.5 | 1.8 | 1 | 1.74 | 55 | |
| 60 | 1825 | 750 | 1050 | 130 | 110 | 46 | 18 | 5.5 | 3.6 | 2.6 | 1.5 | 2.77 | 110 | |
| 70 | 2300 | 600 | 950 | 150 | 125 | 51 | 20 | 6.9 | 3.6 | 2.6 | 1.5 | 4.16 | 140 | |
| 80 | 3275 | 550 | 850 | 170 | 140 | 58 | 20 | 7.5 | 3.6 | 2.6 | 1.5 | 6.09 | 180 | |
| 90 | 5325 | 500 | 750 | 190 | 160 | 64 | 20 | 8 | 3.6 | 2.6 | 2 | 8.2 | 230 | |
| 100 | 7250 | 450 | 680 | 215 | 175 | 73 | 24 | 8.5 | 3.6 | 2.6 | 2 | 12.6 | 380 | |
| 120 | 13500 | 370 | 550 | 260 | 215 | 86 | 28 | 10 | 3.6 | 2.6 | 2.5 | 22 | 650 | |
| 150 | 26625 | 300 | 460 | 320 | 260 | 108 | 32 | 12 | 3.6 | 3.6 | 2.5 | 42 | 1000 | |
| 200 | 44500 | 230 | 350 | 420 | 350 | 138 | 45 | 16 | 7.6 | 3.6 | 3 | 93 | ||
| 2000 | ||||||||||||||
