Zhejiang Waxing Electromechanical Co., Ltd is one of the most professional manufacturers and suppliers of one way overrunning sprag backstop clutch bearing ckf-a2595 in China. Welcome to buy high quality customized bearings made in China here from our factory. For price consultation, contact us.
Quick Details
Usage:
Car Make
Size:
20-320 mm
Car Make:
All Car
OE NO.:
Usual
Place of Origin:
Shandong, China
Brand Name:
WXING
Model Number:
CKF-A2595
Warranty:
1 Months
Product Name:

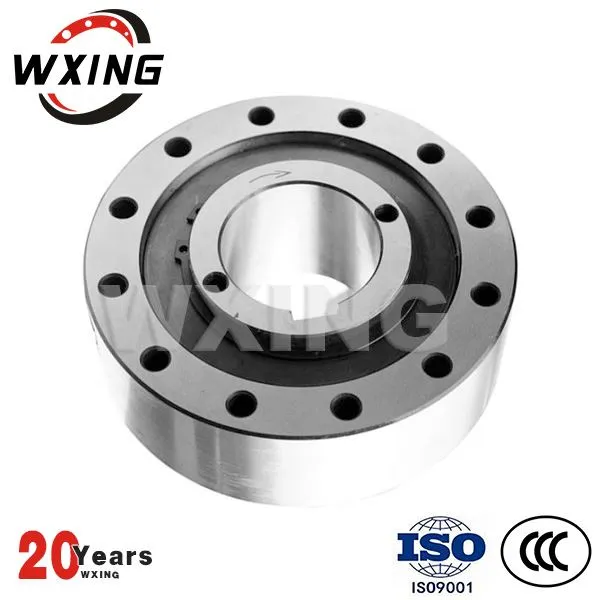

One Way Overrunning Sprag Backstop Clutch Bearing CKF-A2595
Material:
52100 Chromel steel (Gcr15)
Outer dia.:
85-630 mm
Width:
25-220 mm
Torque capacity:
110-20500 N.m
Weight:
0.8-440 kg
Precision Rating:
PO
Application:
1. Backstops 2. Overrunning Clutches
Service:
OEM Customized Services
Seals Type:
Sealed
Packaging & Delivery
Selling Units:
Single item
Single package size:
38X35X25 cm
Single gross weight:
2.500 kg
Package Type:
1. Industrial packaging: Plastic tube (10pcs in one tube)+ carton + plywood pallets; plastic bag + kraft paper + carton + plywood pallets;
2.Commercial packing: 1pc/plastic bag+ single color box+ carton + plywood pallets;
3.According to customer's requirements
Features
Integrated Freewheels CKF are sprag free -wheels without bearing support and with sprag
lift-off X.
The sprag lift-off X ensures a wear-free freewheeling operation when the inner ring rotates at high speed.
The freewheels FXM are used as:
1. Backstops
2. Overrunning Clutches
for applications with high speed freewheeling operation and when used as an overrunning clutch with low
speed driving operation.
Nominal torques up to 888 000 N.m.
Bores up to 460 mm. Many standard bores are available.
Technical Datas
| Item | CKF / FXM Series |
| Material | GCr15 |
| Bore dia. | 20-320 mm |
| Outer dia. | 85-630 mm |
| Width | 25-220 mm |
| Torque capacity | 110-20500 N.m |
| Weight | 0.8-440 kg |
| Package | Carton box, wooden box or as your requirements |
