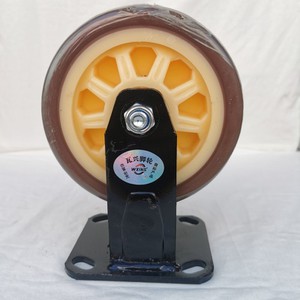

Zhejiang Waxing Electromechanical Co., Ltd is one of the most professional manufacturers and suppliers of 6 inch caster 360 degree noiceless industial wheels for trolly in China. Welcome to buy high quality customized bearings made in China here from our factory. For price consultation, contact us.
Products Description Tel：+8615857360499
Features: Heavy Duty 4 5 6 8 Inch
It is also very difficult to trace the history of casters. However, after people invented the wheel, it became much easier to carry and move objects. However, the wheel can only run in a straight line, and the change of direction when carrying heavy objects still remains. It was very difficult, and later people invented wheels with steering structures, which are what we call casters or universal wheels. The emergence of casters has brought an epoch-making revolution to people's handling, especially moving objects. Not only can they be easily transported, but they can also be moved in any direction, which greatly improves efficiency.
In modern times, with the rise of the industrial revolution, more and more equipment needs to be moved, and casters have become more and more widely used around the world. Casters are almost indispensable in all walks of life. In modern times, with the continuous development of technology, equipment has become more and more versatile and highly utilized, and casters have become an indispensable component. The development of casters has become more professional and has become a special industry.
Specification
|
Size 4 inch |
Base plate square plate size 114*99mm |
Base plate mounting hole distance 85*72mm |
Installation height 142mm |
Load capacity QTY/Ctn 220kgs 24 pcs |
| 5 inch | 114*99mm | 85*72mm | 168mm | 240kgs 16 pcs |
| 6 inch | 114*99mm | 85*72mm | 190mm | 260kgs 12 pcs |
| 8 inch | 114*99mm | 85*72mm | 240mm | 300kgs 8 pcs |
Classification
Packing And Shipping
Structural features
Installation height: refers to the vertical distance from the ground to the equipment installation location. The installation height of the caster refers to the maximum vertical distance from the caster bottom plate and the edge of the wheel.
Bracket steering center distance: refers to the horizontal distance from the vertical line of the center rivet to the center of the wheel core.
Turning radius: refers to the horizontal distance from the vertical line of the center rivet to the outer edge of the tire. An appropriate spacing allows the caster to turn 360 degrees. Whether the turning radius is reasonable or not directly affects the service life of the casters.
Driving load: The load-bearing capacity of the caster when moving is also called dynamic load. The dynamic load of the caster varies depending on the factory's testing methods and the material of the wheel. The key lies in whether the structure and quality of the bracket can withstand impact and Shock.
Impact load: The instantaneous load-bearing capacity of the caster when the equipment is impacted or vibrated by the load. Static load Static load Static load Static load: The weight that the caster can bear in a stationary state. The static load should generally be 5 to 6 times the operating load (dynamic load), and the static load should be at least 2 times the impact load.
Steering: Hard, narrow wheels are easier to turn than soft, wide wheels. The turning radius is an important parameter for wheel rotation. If the turning radius is too short, it will increase the difficulty of steering. If the turning radius is too large, it will cause the wheel to shake and shorten its life.
Driving flexibility: Factors that affect the driving flexibility of casters include the structure of the bracket and the selection of bracket steel, the size of the wheel, the type of wheel, the bearing, etc. The larger the wheel, the better the driving flexibility, and the better the driving flexibility will be on hard and narrow ground on stable ground. The wheels are more labor-intensive than soft wheels with flat edges, but soft wheels are less labor-intensive on uneven ground, but soft wheels can better protect the equipment and absorb shocks on uneven ground!
