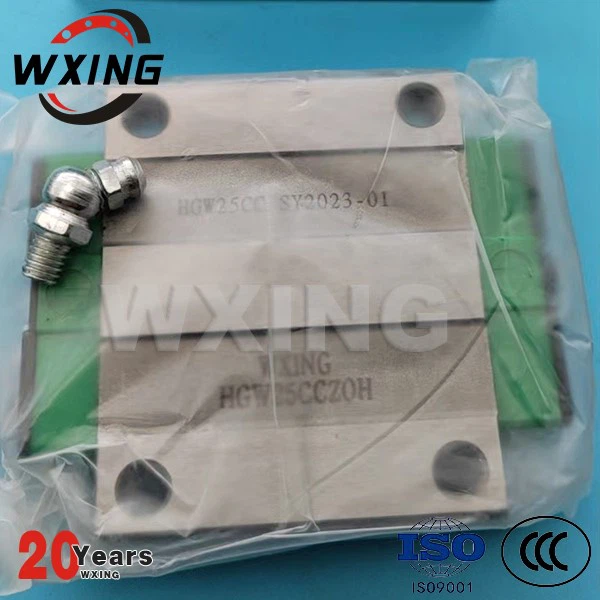

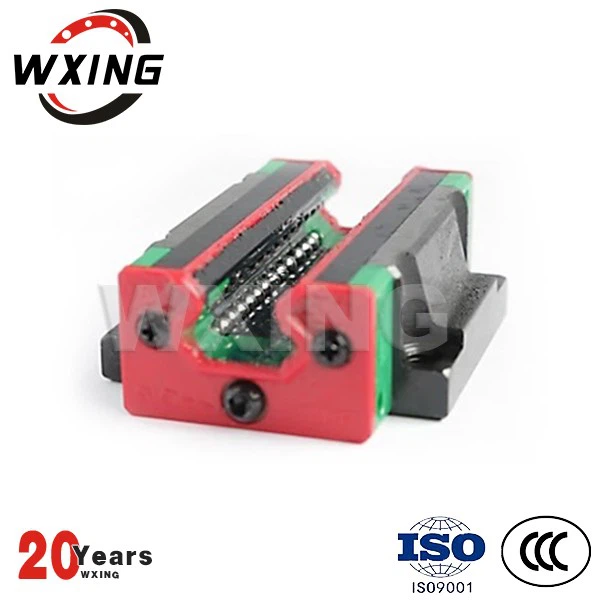

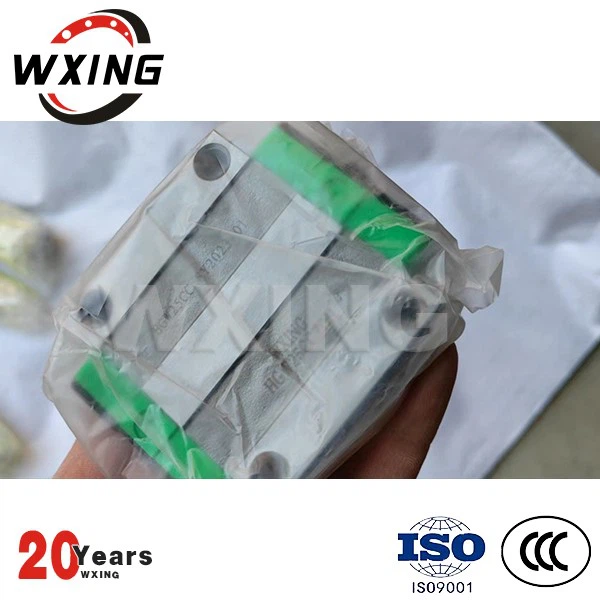

HGW25CCZ0H Linear Bearing

Zhejiang Waxing Electromechanical Co., Ltd is one of the most professional manufacturers and suppliers of hgw25ccz0h linear bearing in China. Welcome to buy high quality customized bearings made in China here from our factory. For price consultation, contact us.

No.: HGW25CCZ0H

Size：84x70x36 mm

Weight：0.59kg

Lead time:5-7 business day

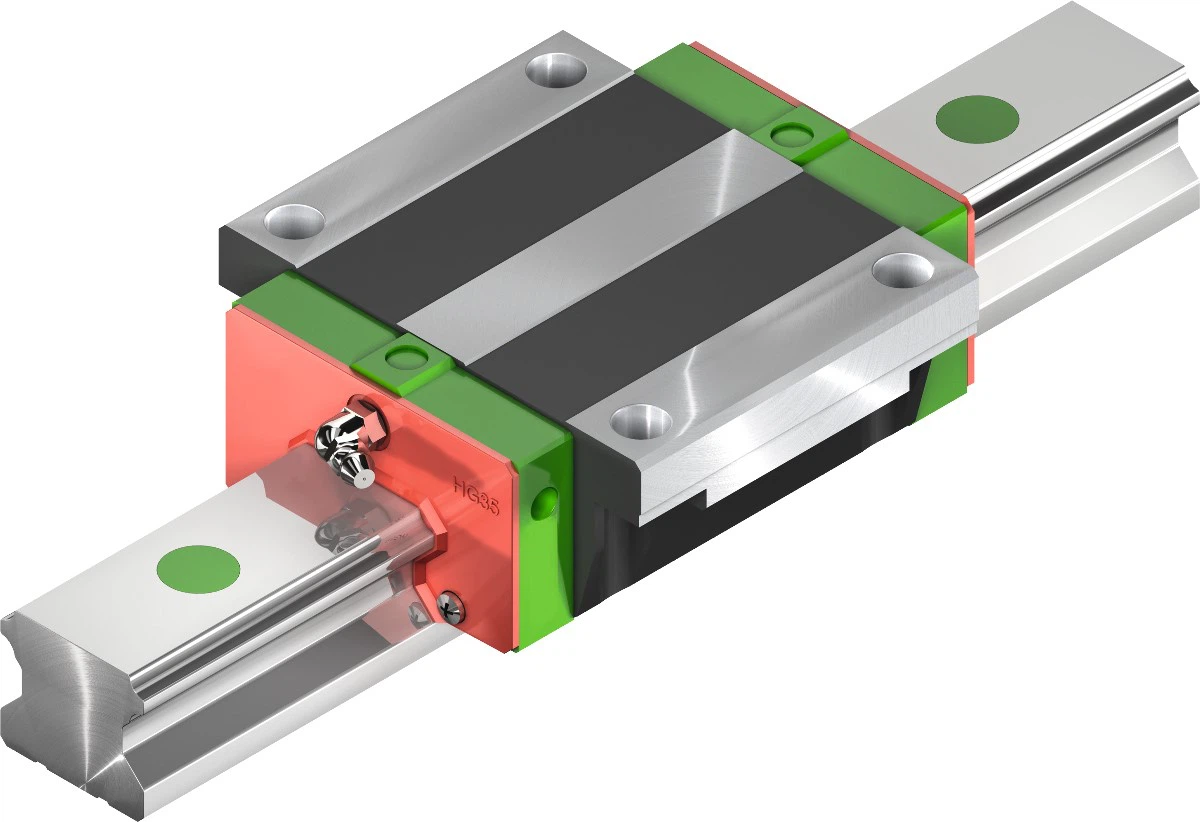

HGW25CCZ0H BlockSize: 25 mmLoad Type: Heavy LoadBlock: Standard BlockPreload Class: Light Preload (0 ~ 0.02C)Precision Code: HDurst Protection: Standard protection (End seal and bottom seal)Lubrication: NoneMetallic End Cap: NoneTotal Height: 30.50 mmTotal Width: 70.00 mmTotal Length: 84.00 mmBolt Hole Spacing – Width: 57.00 mmBolt Hole Spacing – Length: 45.00 mmHole Diameter: 7.00 mm

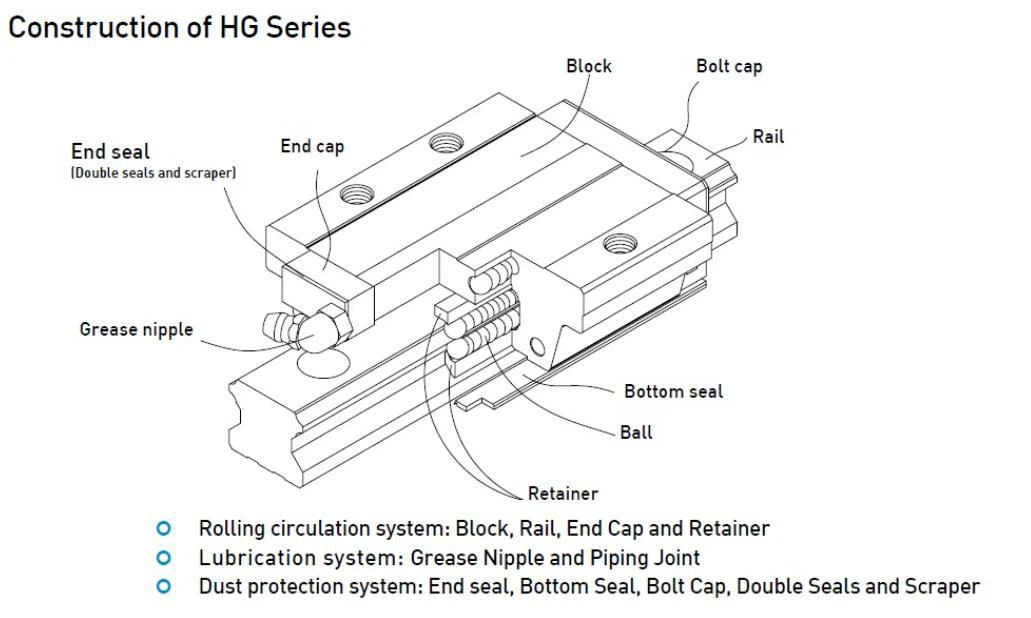

      Linear guides can often be seen in high-precision or high-speed linear reciprocating motion applications. Linear guide rail, also known as linear guide rail and linear slide rail, is a kind of rolling guide. Its operating principle is to perform infinite loop rolling between the slider and the guide rail through steel balls, so that the carried platform can follow the established track. linear motion. Its biggest function is to support the load platform and guide the moving parts, so that it can do reciprocating linear motion.

Linear guide rails are widely used in intelligent automation machinery, and are also widely used in precision equipment such as precision electronic equipment, tensile testing machines and digital three-dimensional coordinate measuring equipment, as well as multi-axis machine tools, punching machines, tool grinding machines, automatic gas cutting machines, printers, It exists in the sliding parts of industrial machinery such as card sorting machines and food packaging machines.

      The editor will explain to you what is the basis for the selection of linear guide rails?

First, the load capacity, in fact, this mainly depends on the accuracy level of the linear guide rail. Generally speaking, there are five types of accuracy grades of the linear guide rail: ordinary level, advanced level, precision level, ultra-precision level and ultra-high precision level, to judge the level The standard mainly has three aspects: one is the parallelism of the slider C facing the surface A of the slide rail; the other is the parallelism of the slider D facing the surface B of the slide rail; , when the slider travels along the stroke, the parallelism error between the guide rail and the reference plane of the slider. The higher the parallelism, the lower the error and the higher the accuracy level.

      Second, the conditions of use. The conditions of use are not only which equipment the selected linear guide rail should be used for, but also for the equipment, what kind of use frequency and environment the matching linear guide rail should have. Generally, by using the option of conditions, we can roughly determine the appropriate linear guide series.

Third, the length of expected life, setting the size and number of sliders, calculating the maximum load of the slider, selecting the preload, confirming rigidity, and calculating the service life, etc., to determine the service life of the linear guide.

The above three sharings are for the linear guide product itself, and are applicable to any brand. In the actual purchase, the brand is also a factor that we must consider. In this product category of linear guides, there are also brands with high quality and good prices. Taiwan Hi-tech GAOJ-K is one of the best. GAOJ-K has its own strong R&D team in the field of precision transmission components, focusing on the development of key core technologies for linear transmission.

        LMG15C, LMG20C, LMG20LC, LMG25C, LMG25LC, LMG30C, LMG30LC, LMG35C, LMG35LC, LMG45C, LMG45LC for high assembly flange series

        It can be replaced by G15A, G20A, G20LA, G25A, G25LA, G30A, G30LA, G35A, G35LA, G45A, G45LA of GAOJ-K;

LMG15T, LMG15ST, LMG20T, LMG20ST, LMG25T, LMG25ST, LMG30T, LMG30ST of low assembly square series
