AXK0515TN Flat Cage Needle Bearing
video
AXK0515TN Flat Cage Needle Bearing

AXK0515TN Flat Cage Needle Bearing

AXK0515TN Flat cage needle bearing plane thrust BRAND: WXING SIZE: 5*15*2MM
Send Inquiry
Chat Now

Zhejiang Waxing Electromechanical Co., Ltd is one of the most professional manufacturers and suppliers of axk0515tn flat cage needle bearing in China. Welcome to buy high quality customized bearings made in China here from our factory. For price consultation, contact us.





The Overview

The Quick Details

Type:



Needle

Bore Size:



5-5.01 mm mm

Applicable Industries:



Building Material Shops, Manufacturing plants, Machinery Repair Shops, Printing Shops, Construction works, Energy & Mining

Brand Name:



WXING&OEM

Model Number:



AXK0515TN

Precision Rating:



P0, P6, P5, P4, P2

Sea-air-land Type were:



The OPEN

Number of the Row:



Single Row

Place of Origin:



Shandong, China

Product name:



Needle roller bearing AXK0515TN

Material:



Chrome Steel,

The Size:



5 * 15 * 2 mm

Cage material:



Nylon & metal

Clearance:



C2, C0, C3, C4, C5

Noise Level:



Z1Z2 Z3 Z4

Vibration:



V1 V2 V3 V4

Bearing precision:



P0 / P1 / P2, P3 / P4, P6 / P5

Certificate:



ISO9001:2008

Package:



Plastic tube & according to client's requirements

Packaging & Delivery

Shot Units:



Single item



Single package size:



0.5 X1.5 X0.5 cm



Single gross weight:



0.008 kg



Package Type:



Miniature Needle bearing AXK0515TN: plastic tube & white box & according to client's requirements



Lead Time:



Quantity(Pieces) 1-1000 >1000

Est. Time (days) 3 To be negotiated

Description

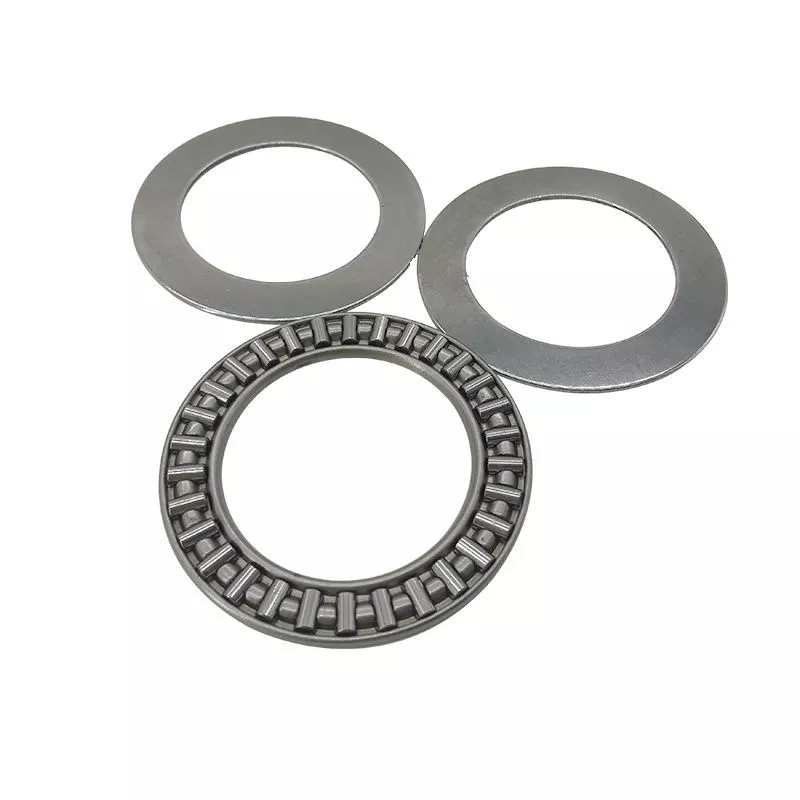

Miniature Needle bearing AXK0515TN Flat cage needle bearing plane thrust needle roller bearing 5*15*2MM



 Miniature Needle bearing AXK0515TN Flat cage needle bearing plane thrust needle roller bearing 5*15*2MMMiniature Needle bearing AXK0515TN Flat cage needle bearing plane thrust needle roller bearing 5*15*2MMMiniature Needle bearing AXK0515TN Flat cage needle bearing plane thrust needle roller bearing 5*15*2MMMiniature Needle bearing AXK0515TN Flat cage needle bearing plane thrust needle roller bearing 5*15*2MMMiniature Needle bearing AXK0515TN Flat cage needle bearing plane thrust needle roller bearing 5*15*2MM

 Other AXK products:

AXK1024

Miniature Needle bearing AXK0515TN Flat cage needle bearing plane thrust needle roller bearing 5*15*2MMMiniature Needle bearing AXK0515TN Flat cage needle bearing plane thrust needle roller bearing 5*15*2MM



Miniature Needle bearing AXK0515TN Flat cage needle bearing plane thrust needle roller bearing 5*15*2MMMiniature Needle bearing AXK0515TN Flat cage needle bearing plane thrust needle roller bearing 5*15*2MM

Models




Shaft Diameter Bearing Designation Boudary Dimensions Basic Load Rating Limiting Speed Besring
d D Dw Cr Dynamic Cor Static Oil Washer Shaft Loc.Washer Washer Shaft
mm mm N rpm
4 AXK0414TN 4 14 2 4380 7500 18000 AS 0414 - -
5 AXK0515TN 5 15 2 4680 9100 17000 AS 0515 - -
6 AXK0619TN 6 19 2 6740 15400 16000 AS 0619 - -
8 AXK0821TN 8 21 2 7750 19000 15000 AS 0821 - -
10 AXK1024 10 24 2 9150 24500 14000 AS 1024 - -
12 AXK1226 12 26 2 9860 28600 13000 AS 1226 - -
15 AXK1528 15 28 2 11200 35500 11000 AS 1528 GS 811 02 WS 811 02
17 AXK1730 17 30 2 11800 38600 10000 AS 1730 GS 811 03 WS 811 03
20 AXK2035 20 35 2 12900 45600 8500 AS 2035 GS 811 04 WS 811 04
25 AXK2542 25 42 2 13800 67800 7000 AS 3542 GS 811 05 WS 811 05
30 AXK3047 30 47 2 15600 69500 6000 AS 3047 GS 811 06 WS 811 06
35 AXK3552 35 52 2 16900 80100 5500 AS 3552 GS 811 07 WS 811 07
40 AXK4060 40 60 3 27500 113500 4700 AS 4060 GS 811 08 WS 811 08
45 AXK4565 45 65 3 29050 127600 4300 AS 4565 GS 811 09 WS 811 09
50 AXK5070 50 70 3 31500 138000 3900 AS 5070 GS 811 10 WS 811 10
55 AXK5578 55 78 3 37400 185000 3500 AS 5578 GS 811 11 WS 811 11
60 AXK6085 60 85 3 43900 232500 3200 AS 6085 GS 811 12 WS 811 12
65 AXK6590 65 90 3 45800 254600 3000 AS 6590 GS 811 13 WS 811 13
70 AXK7095 70 95 4 53600 254400 2900 AS 7095 GS 811 14 WS 811 14
75 AXK75100 75 100 4 54500 264600 2700 AS 75100 GS 811 15 WS 811 15
80 AXK80105 80 105 4 55600 278500 2600 AS 80105 GS 811 16 WS 811 16
85 AXK85110 85 110 4 57500 28800 2400 AS 85110 GS 811 17 WS 811 17
90 AXK90120 90 120 4 72500 401000 2300 AS 90120 GS 811 18 WS 811 18
100 AXK100135 100 135 4 90500 559500 2000 AS 100135 GS 811 20 WS 811 20
110 AXK110145 110 145 4 96500 617500 1900 AS 110145 GS 811 22 WS 811 22
120 AXK120155 120 155 4 101500 679600 1700 AS 120155 GS 811 24 WS 811 24
130 AXK130170 130 170 5 132400 838900 1600 AS 130170 GS 811 28 WS 811 26
140 AXK140180 140 180 5 137200 899600 1500 AS 140180 GS 811 30 WS 811 28
150 AXK150190 150 190 5 142800 959000 1400 AS 150190 GS 811 32 WS 811 30
160 AXK160200 160 200 5 147600 1015000 1300 AS 160200 GS 811 32 WS 811 32
