Zhejiang Waxing Electromechanical Co., Ltd is one of the most professional manufacturers and suppliers of nj2316exlm1c3 bearing 80x170x58mm size in China. Welcome to buy high quality customized bearings made in China here from our factory. For price consultation, contact us.

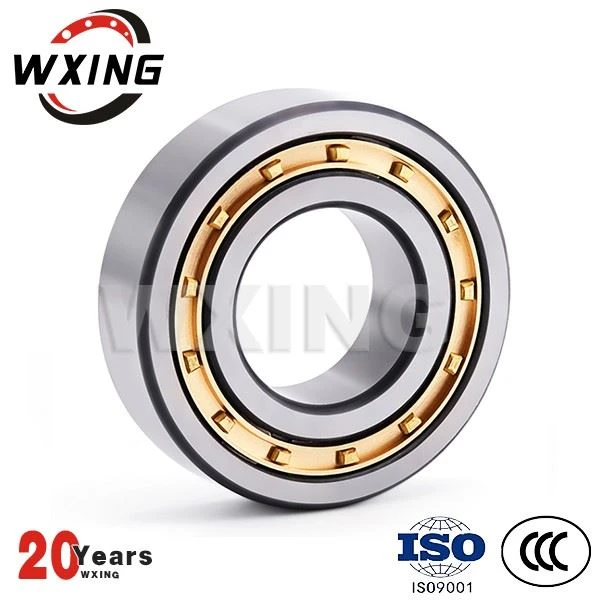

NJ2316-E-XL-M1-C3 CYL RLR BRG
80MM Bore; Straight Bore Profile; 170MM Outside Diameter; 58MM Width; Brass Cage Matetrial; ISO 9001 ; Single Row; Inner Ring - One Side Separable; No Snap Ring; Relubricatable; C3-Loose Internal Clearance; Retainer
Suffix description
E
Increased Load Capacity
M1
Solid Brass Cage, Two Piece, Roller Guided
C3
Internal Clearance Larger Than Normal
main dimensions to DIN 5412-1, non-locating bearing, separable, with cage. Single row cylindrical roller bearings with cage are units comprising solid inner and outer rings together with cylindrical roller and cage assemblies. The outer rings have rigid ribs on both sides or are without ribs, the inner rings have one or two rigid ribs or are designed without ribs. The cage prevents the cylindrical rollers coming into contact with each other during rolling. The cylindrical roller bearings are very rigid, can support high radial loads and, due to the cage, are suitable for higher speeds than the full complement designs. Bearings with suffix E have a larger roller set and are thus designed for extremely high load carrying capacity. The bearings can be taken apart and can therefore be fitted and dismantled more easily. Both bearing rings can therefore have an interference fit.
