Zhejiang Waxing Electromechanical Co., Ltd is one of the most professional manufacturers and suppliers of 22312ca-w33-spherical-roller-bearing in China. Welcome to buy high quality customized bearings made in China here from our factory. For price consultation, contact us.
A: What does bearing CA/CC/W33 mean？
CA means copper retainer
CC means steel retainer
W33 means that the outer ring has oil grooves and three oil holes
These are the codes of spherical roller bearings
B: Spherical roller bearing clearance standard?
The internal clearance of standard spherical roller bearings is C2, Standard (CN), C3, C4 and C5, all complying with GB4604
C:Spherical roller bearings can be divided into:
(1) Miniature bearings - bearings with a nominal outer diameter of 26mm or less;
(2) Small bearings, the nominal outer diameter is 28-55mm;
(3) Small and medium-sized bearings - bearings with a nominal outer diameter range of 60-115mm;
(4) Medium and large bearings - bearings with a nominal outer diameter range of 120-190mm
(5) Large bearings, the nominal outer diameter range is 200-430mm;
(6) Extra-large bearings - bearings with a nominal outer diameter of 440mm or greater.

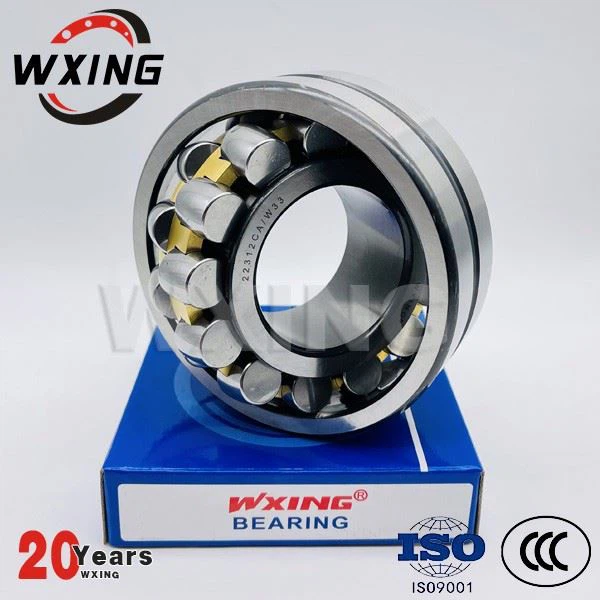

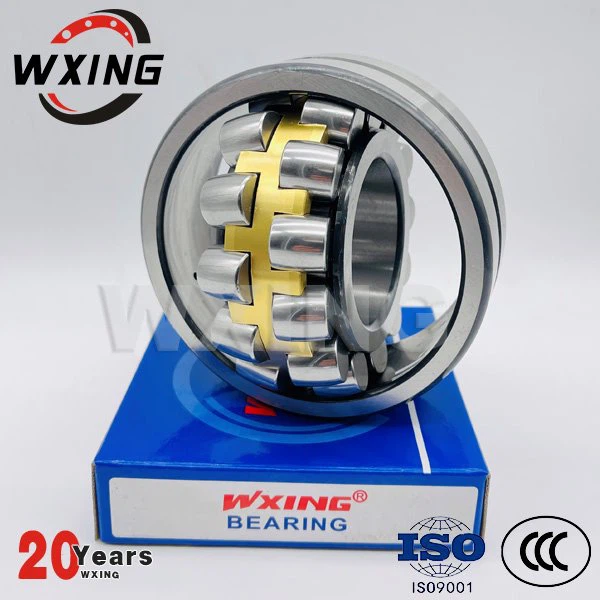

Spherical Roller Bearing 22312CA 22312K Steel Bearing 22312
Parameters of Design spherical roller bearing 22312
(d)Bore Diameter:
260 mm
(D)Outside Diameter:
130 mm
(B)Overall Width:
46 mm
(C)Dynamic Load Capacity:
325 kN
(Co)Static Load Capacity:
335 kN
Reference speed:
4000 RPM
Limiting speed:
5300 RPM
Bearing weight
3.1 kg
