Zhejiang Waxing Electromechanical Co., Ltd is one of the most professional manufacturers and suppliers of 23248 ccw33 c3- spherical roller bearings in China. Welcome to buy high quality customized bearings made in China here from our factory. For price consultation, contact us.

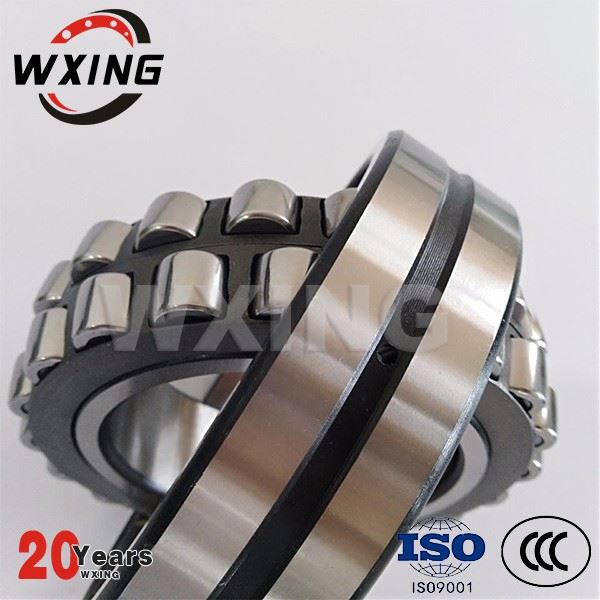

No.:23248 CCW33 C3
Size:240x440x160mm
Weight:110kg
1. Type:Spherical roller bearings
Quality:High Precision Quality
| Type | Spherical Roller Bearing | Dynamic load capacity: | 3042 kN | |
| Model No. | 23248 CC/W33 | Static load capacity: | 4300 kN | |
| Bore diameter: | 240 mm | Limiting speed | 1300 RPM | |
| Outside diameter: | 440 mm | Reference speed | 950 RPM | |
| Overall width: | 160 mm | Cage material: | Stamped Steel | |
| Bore type: | Cylindrical 1:1 | Bearing material: | Chrome Steel | |
| Clearance: | Normal | Cage type: | High Capacity Internal Design | |
| Weight | 105 KG | Price | contact us |
Types
| C |
Stamped steel retainer and strengthened symmetric rollers for considerably higher load ratings |
| CA |
one piece brass retainer and strengthened symmetric rollers; exchange with C design, especially for large size |
| MB |
Two-piece precision-machined brass retainer and strengthened symmetric rollers; equivalent to C design in load capacity. |
| CC | steel cage, replace traditionalbrass cage |
| E | Third generation design to improve stress distribution for much longer service life |
| TN | Nylon retainer |
| Others |
all other types are available,sush as: CW33;MW33;KCW33;KMW33;E;EK;E1;E1K;CCK/W33;CAK/W33;EKJA/VA;EJA/VA;EK+H |
Spherical Roller Bearing has many model suffixes, we briefly introduce the commonly used ones. If you have other doubts, please click on the right " chat now", 24 hours online, ready to answer you !
