The Quick Details
Type:
Needle, Needle
Bore Size:
4-20 mm
Brand Name:
WXing
Outside Diameter:
8-33 mm
Model Number:
OWC1016
Precision Rating:
P6
Sea-air-land Type were:
The open
Number of the Row:
Single Row
Place of Origin:
Zhejiang, China
Product name:
Needle bearing
Material:
Powder metallurgy
The Size:
10 X 10 X 16MM
Height:
6 to 16 mm
Weight:
1.6-23 g
Driving Torgue:
2.5-108 nm
OEM:
The Accept
Delivery time:
2-3 days
Stock:
Rich
Packaging & Delivery
Shot Units:
Single item
Single package size:
X18x10 19 cm
Single gross weight:
0.003 kg
Package Type:
Plactic bag + Carton Box

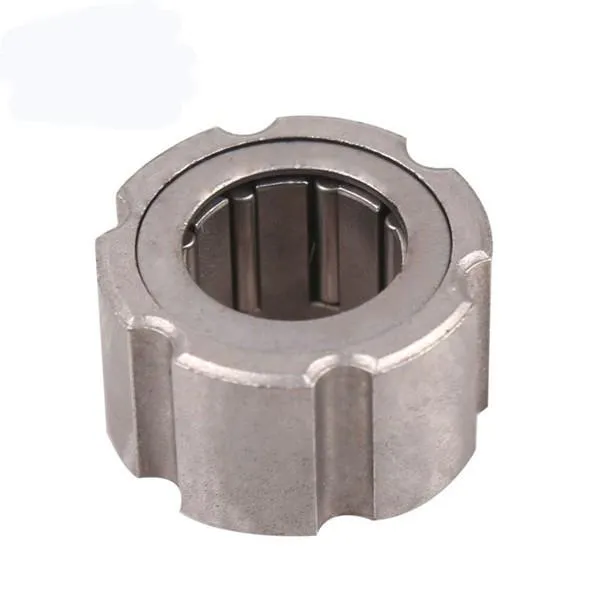

OWC1016 Powder Metallurgy One Way Needle Roller Bearing
Features of OWC1016 Needle Bearing
OWC is a one way needle clutch which applied flexibly of the technology of small bearings ,and
make the structure more compact as well as higher performance.
Material of OWC1016 Needle Bearing
Outer ring: is made by sintered metal
Spring: is made by stainless steel
|
Product name |
Needle Roller Bearing |
|
Model |
OWC1016 |
|
Material |
ST14 |
|
Shaft diameter |
10mm |
|
lnner diameter |
10mm |
|
Outer diameter |
16mm |
|
Weight |
3g |
|
Application |
Fishing machinery, ATM, Counting machine, Printer, copier, etc |
|
Package |
Roller Pack, Carton box , Pallet or Customized |
|
Payment terms |
TT. L/C, D/A,D/P,Western Union, Paypal |
|
Delivery time |
2-4 days for the sample, 7 days for big order |
Catalogue of OWC1016 Needle Bearing for your choice
GXRZ series are clockwise rotation
GXLZ series are anticlockwise rotation
| Shaft Dia. | Model | Weight | Size (mm) | Driving Torque | ||
| mm | g | Inner Dia. | Outer Dia. | Height | ( Nm ) | |
| 4 | OWC406GXRZ | 1.6 | 4 | 8 | 6 | 2.5 |
| 4 | OWC408GXRZ | 1.8 | 4 | 8 | 8 | 3.1 |
| 4 | OWC410GXRZ | 1.8 | 4 | 10 | 5.4 | 2.8 |
| 5 | OWC511GXRZ | 2 | 5 | 11 | 5.4 | 3.5 |
| 6 | OWC612GXRZ | 2.3 | 6 | 12 | 5.4 | 5.2 |
| OWC612GXLZ | 2.3 | 6 | 12 | 5.4 | 5.2 | |
| 8 | OWC814GXRZ | 2.8 | 8 | 14 | 5.4 | 6.1 |
| 8 | OWC814GXLZ | 2.8 | 8 | 14 | 5.4 | 6.1 |
| OWC812GXRZ | 2.8 | 8 | 12 | 5 | 5.8 | |
| 10 | OWC1016GXRZ | 3 | 10 | 16 | 5.4 | 9.5 |
| 10 | OWC1016GXLZ | 3 | 10 | 16 | 5.4 | 9.5 |
| 6 | OWC612-8.4 | 2.35 | 6 | 12 | 8.4 | 6.8 |
| 6 | OWC610GXRZ | 2.38 | 6 | 10.2 | 8 | 4.6 |
| 6 | OWC614-7 | 2.1 | 6 | 14 | 7 | 6.6 |
| 6 | OWC720 | 2.5 | 6 | 12.7 | 7.5 | 7.3 |
| 6 | OWC178 | 3 | 6 | 10.2 | 15 | 7.3 |
| 8 | OWC816-7 | 2.6 | 8 | 16 | 7 | 7.5 |
| 8 | OWC812 | 3 | 8 | 12.7 | 7.3 | 6.8 |
| 8 | OWC816-5.5 | 3.5 | 8 | 16 | 5.5 | 8.2 |
| 8 | OWC816-6.2 | 3.8 | 8 | 16 | 6.2 | 8.8 |
| 10 | OWC1016-8 | 3.35 | 10 | 16 | 8 | 9.7 |
| 10 | OWC1019GXLZ | 8.5 | 10 | 19 | 11 | 19.8 |
| 17 | OWC173512 | 22.5 | 17 | 35 | 12 | 78 |
| 17 | OWC173516 | 25.5 | 17 | 35 | 16 | 95 |
| 17 | OWC203316 | 23 | 20 | 33 | 16 | 108 |
| MARKS:NON-STANDARD CAN BE PRODUCED | ||||||
