The Quick Details
Structure:
Deep Groove
Type:
Ball
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Deep groove bearing 2rs zz 6203
Bore Size:
1-17 mm
Model Number:
6203
Precision Rating:
P0, P6, P5, P4, P2
Sea-air-land Type were:
2 rs/Open, Open
Number of the Row:
Single Row
Place of Origin:
Zhejiang, China
PAYMENT:
T/T L/C, Paypal
Material:
ceramic
Lubrication:
Dry,
Color:
Black
Application:
The Food industry/Oil industry
Cage:
PEEK
Main Market:
America Europe, Asia, the Middle
Name:
Deep groove bearing 2rs zz 6203 firing high quality
Package:
The Original Package
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard package, to the as on pallet or in cartons or by the customer 's request
The Port
QINGDAO
Picture Example:
Package - img package - img
Lead Time:
Quantity(Pieces) 1-100 >100
Est. Time (days) To be negotiated

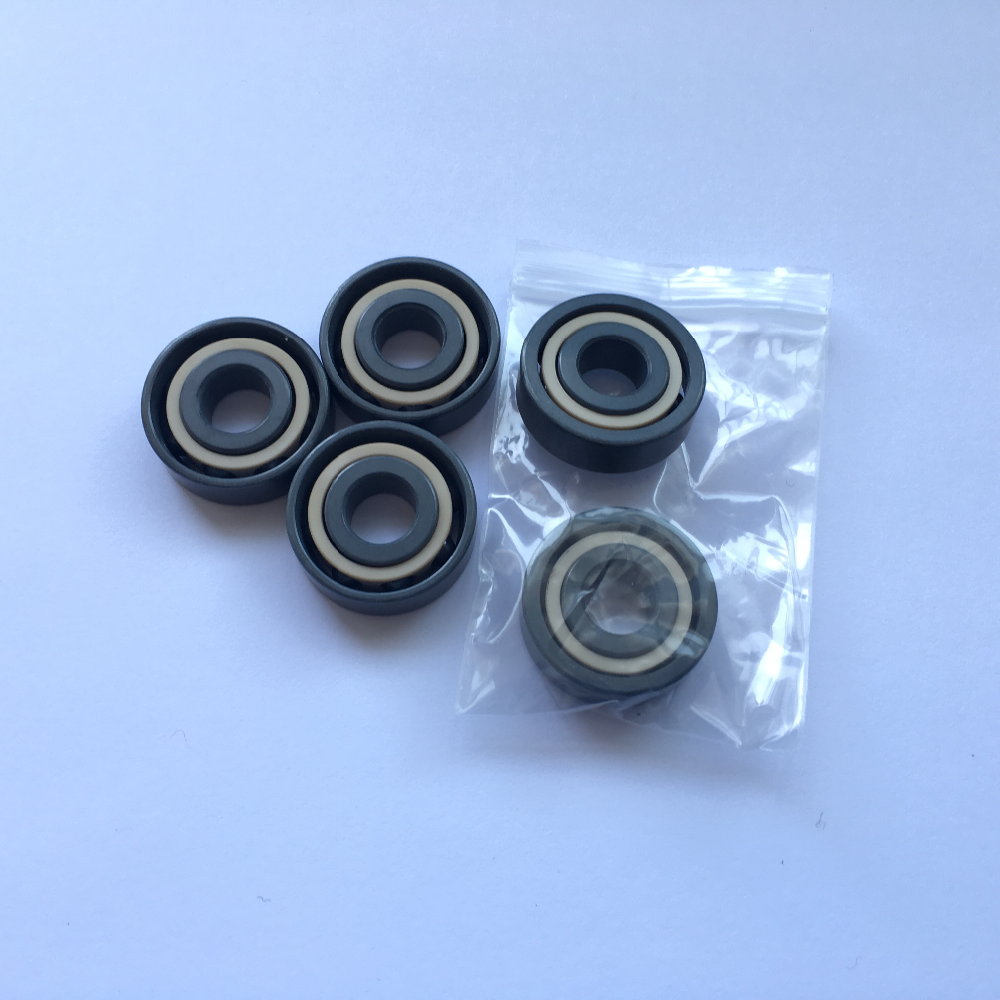

Silicon Nitride Ceramic (Si3N4)
|
Product Name
|
Deep groove bearing 2rs zz 6203 ceramic high quality
|
|
Material
|
ceramic rings , ceramic ball
|
|
Color
|
black
|
|
Grease
|
Dry,
|
|
Cage
|
PEEK
Other chooses: GFRPA66-25,Phonemic Textiles Tube,etc.White PTFE(Teflon)
|
|
Dimension
|
17x40x12mm
|
|
Used
|
Alkali and Acid and other hostile environment and special application
|
Higher temperature
Ceramic maintains mechanical properties at high temperature, so full ceramic bearing can be used at elevated temperature
Corrosion resistant
Full ceramic bearing are more suitable for chemical industry application
Temperature-variation
Because thermal expansion co-efficiency of ceramic are smaller than metal, so the change of clearance of full ceramic bearing is smaller than that of metal bearing
Work under poor lubrication
Because ceramics are self-lubrication. Full ceramic bearing could be used at high-vacuum environment
Prevent electrical arcing
Because ceramics is not electrical conductor
Magnetic environment
Because ceramics do not respond to magnetic forces
|
Bearing Part No.
|
Boundary Dimensions
|
Mass(KG)
|
|||||
|
ID(mm)
|
OD(mm)
|
Width(mm)
|
ZrO2
|
Si3N4
|
Plastic
|
440C
|
|
|
6000
|
10
|
26
|
8
|
0.014
|
0.0075
|
0.0035
|
0.018
|
|
6001
|
12
|
28
|
8
|
0.017
|
0.0092
|
0.004
|
0.019
|
|
6002
|
15
|
32
|
9
|
0.024
|
0.013
|
0.006
|
0.0031
|
|
6003
|
17
|
35
|
10
|
0.032
|
0.017
|
0.008
|
0.041
|
|
6004
|
20
|
42
|
12
|
0.052
|
0.028
|
0.013
|
0.068
|
|
6005
|
25
|
47
|
12
|
0.061
|
0.033
|
0.015
|
0.079
|
|
6006
|
30
|
55
|
13
|
0.089
|
0.05
|
0.022
|
0.116
|
|
6007
|
35
|
62
|
14
|
0.12
|
0.06
|
0.029
|
0.15
|
|
6008
|
40
|
68
|
15
|
0.15
|
0.08
|
0.037
|
0.19
|
|
708
|
8
|
22
|
7
|
0.0093
|
0.005
|
0.0023
|
0.012
|
Showcase
Showcase
Si3N4 series
Equipment
Ceramic balls
Equipment
Ceramic bearings
Packing Details : Single packed in small white box then in big carton or wooden box or pallet
Delivery Details : Common sizes we have in stock and can send out immediately or 7~10 days assembling time or 20~25 days production time
