Zhejiang Waxing Electromechanical Co., Ltd is one of the most professional manufacturers and suppliers of thrust ball bearing f7-15m chrome steel in China. Welcome to buy high quality customized bearings made in China here from our factory. For price consultation, contact us.
Quick Details
Structure:
Thrust
Type:
Ball
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Brand Name:
WXing
Model Number:
F7-15M
Precision Rating:
P0
Seals Type:
NO
Number of Row:
Single Row
Place of Origin:
shandong, China
Product name:
F7-15M Thrust Ball Bearing
Specification:
7*15*5mm
Material:
Chrome steel
Sample:
Availible
Weight:
0.004kg
Precision:
P0
Clearance:
C0
Certification:
ISO9001: 2019
Packaging & Delivery
Selling Units:
Single item
Single package size:
26X19X19 cm
Single gross weight:
0.004 kg
Package Type:
F7-15M 7*15*5mm chrome steel thrust ball bearing with brass cage for Air Guan\
one piece per pee pack, 1500pcs per carton, carton size: 26*19*19cm
Lead Time :
Quantity(Pieces) 1 - 5000 5001 - 10000 >10000
Est. Time(days) 5 10 To be negotiated
* Model: F7-15M (Bore Dia. (d)=7mm, Outer Dia. (D)=15mm, Height (H)=5mm)
* Designed for low speed operation and axial loads only
* Made from Chromium Steel (GCr15) , durability and resistance to deformity under loads
* High performance, low noise and long life, easy to maintain
* Mainly used in automotive industry and machine tool
The separable components of thrust ball bearings are interchangeable. This facilitates mounting and dismounting, and maintenance
inspections.

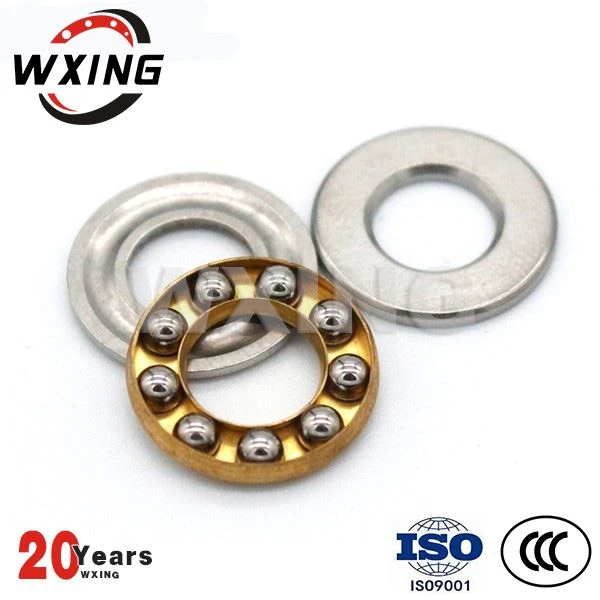

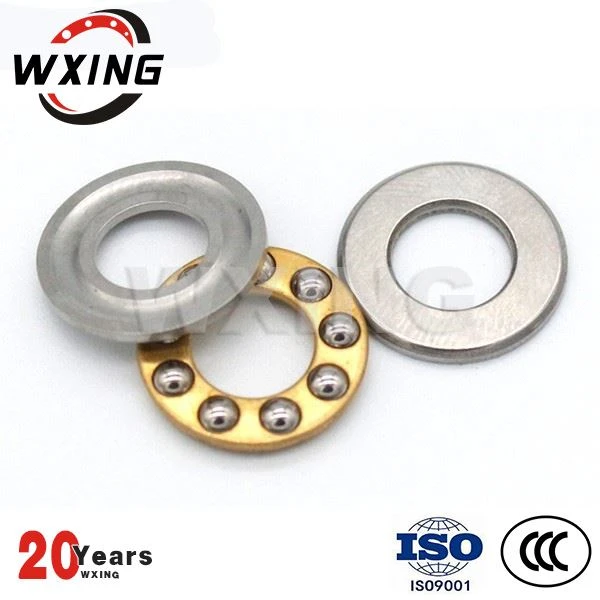

Thrust Ball Bearings are consisted of a shaft washer, a housing washer and a ball and cage assembly.
They are designed to accommodate axial loads and locate a shaft axially, in one direction only, and must not be subjected to any
radial load.
Chromium Steel (GCr15) Shaft and Housing Washer provide high and uniform hardness, good wear resistance.
Specification:
Model: F7-15M
Shaft/Housing Washer Material: Chromium Steel (GCr15)
Bearing Ball Material: Chromium Steel (GCr15)
Cage Material: Stamping Steel
Bore Diameter (d): 7mm
Outer Diameter (D): 15mm
Thickness (B): 5mm
Dynamic Load Rating (Cr): 2.2kN
Static Load Rating (Cor): 2.0kN
Limiting Speed (Grease): 3600rpm
Limiting Speed (Oil): 7100rpm
Accuracy Class: P0
